B7060LSRG-12

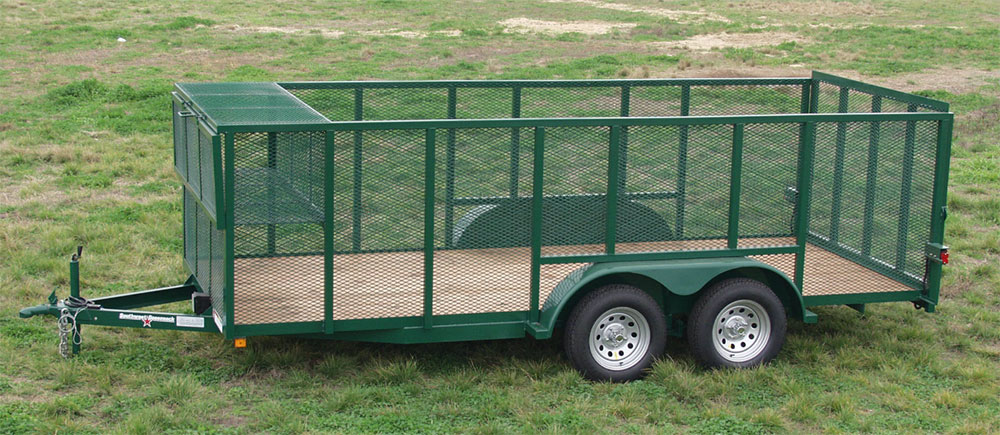

Model Shown is B7083LSRG-16
GVWR |
7000# |
AXLE |
2-3,500# DEXTER AXLE W/BRAKES |
SUSPENSION |
EYE TO EYE SPRING |
COUPLER |
2″ Adjustable |
SAFETY CHAINS |
1/4′ W/GRAB HOOK |
JACK |
2,000# TOP WIND |
TONGUE/NECK |
4″ C-CHANNEL |
FRAME |
3″X3″X1/4″ ANGLE |
CROSSMEMBERS |
3″X2″X3/16 ANGLE |
RAMPS |
RAMP GATE |
SIDE / TOP RAIL |
2″ SQUARE TUBE |
FLOOR |
TREATED WOOD |
FENDERS |
TREAD PLATE SQUARE BROKE |
WHEELS |
15″ |
TIRES |
ST205/75R15 |
LIGHTS |
100% LED |
WIRING |
SEALED WIRING HARNESS |
ELECTRICAL PLUG |
7-WAY RV |
FINISH |
PREP / PRIMED / PAINTED |
Additional Models |
||
| B7060LSRG-14 | 60″ x 14′ 7,000# GVWR | |
| B7060LSRG-16 | 60″ x 16′ 7,000# GVWR | |
| B7077LSRG-12 | 77″ x 12′ 7,000# GVWR | |
| B7077LSRG-14 | 77″ x 14′ 7,000# GVWR | |
| B7077LSRG-16 | 77″ x 16′ 7,000# GVWR | |
| B7083LSRG-12 | 83″ x 12′ 7,000# GVWR | |
| B7083LSRG-14 | 83″ x 14′ 7,000# GVWR | |
| B7083LSRG-16 | 83″ x 16′ 7,000# GVWR | |
Options |
| Tire Upgrade |
| Tread Plate Decking |
| Rumber Decking |
| Solid Metal Sides |
| Split Ramp Gate |
| Spring Loaded Ramp Gate |
| Aluminum Tongue Box |
| Swivel Jack |
| Spare |
| 2′ x 2′ x 2′ Blower Box |
| Weedeater Rack |
| Spare |
| Water Cooler Holder |
| Colors Other Than Black |
| Electric Jack W/ Battery |
