G1683BCSI-20
SIGNATURE SIG

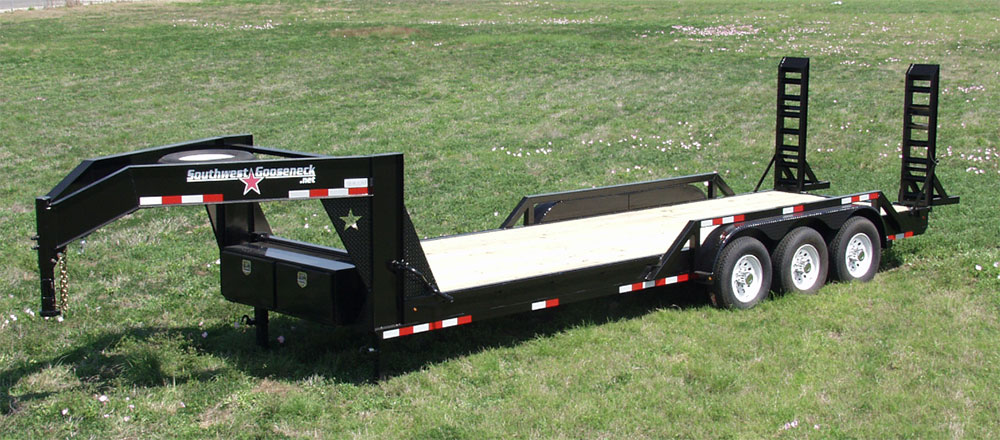

Model Shown is G2083bcsu-28
GVWR |
16,000# |
AXLE |
7,000# HD DEXTER AXLE |
SUSPENSION |
8K SLIPPER SPRING |
COUPLER |
2-5/16″ ABS |
SAFETY CHAINS |
GRADE 43Â —Â 3/8″ |
JACK |
2 – 12,000# DROPLEG |
TONGUE/NECK |
12″ I-NEAM |
FRAME |
6″ / 8″ C-CHANNEL |
CROSSMEMBERS |
3″ MINI I-BEAM |
RAMPS |
SLIDE IN |
SIDE / TOP RAIL |
3″ SQUARE TUBE .188 THICKNESS OVER FENDER WITH 45’S |
FLOOR |
TREATED WOOD |
FENDERS |
TREADPLATE STEEL SQUARE BROKE |
WHEELS |
17.5″ |
TIRES |
ST215/75R 17.5 (16PLY) |
LIGHTS |
100% LED |
WIRING |
SEALED WIRING HARNESS |
ELECTRICAL PLUG |
7-WAY RV STYLE |
FINISH |
PREP / PRIMED / PAINTED |
STORAGE |
LOCKING CHAIN TRAY |
Additional Models |
||
| G1683BCSI-22 | 83″ x 22′ 16,000# GVWR – Slide in Ramps | |
| G1683BCSI-24 | 83″ x 24′ 16,000# GVWR – Slide in Ramps | |
| G1683BCSI-26 | 83″ x 26′ 16,000# GVWR – Slide in Ramps | |
| G1683BCSU-20 | 83″ x 20′ 16,000# GVWR – Stand up Ramps | |
| G1683BCSU-22 | 83″ x 22′ 16,000# GVWR – Stand up Ramps | |
| G1683BCSU-24 | 83″ x 24′ 16,000# GVWR – Stand up Ramps | |
| G1683BCSU-26 | 83″ x 26′ 16,000# GVWR – Stand up Ramps | |
Options |
| Torflex Axles |
| 8,000# Dexter Axles |
| Dexter AirFlex Suspension |
| Recessed Chain Tie Downs |
| Locking Chain Tray with Jack Lock |
| Tread Plate Decking |
| Colors Other Thank Black |
| Hydraulic Jack |
| Rear Stabilizer Jacks |
| Tire Upgrade |
| Spare |
| Disc Brakes |
| Locking Spare Tire Rack |
| Rumber Decking |
| Dovetail |
| Electric Jack Motor |
| Disc Brakes |
